Description
Bulgaria VFR Aeronautical Chart – ICAO Chart 500k
Edition 2024
Special features for this region:

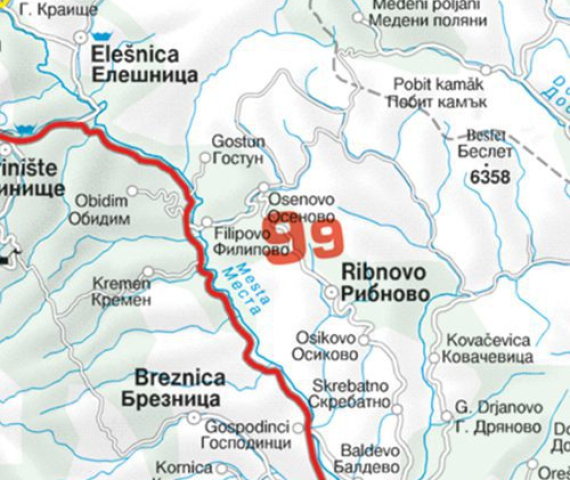

- Grid area altitude

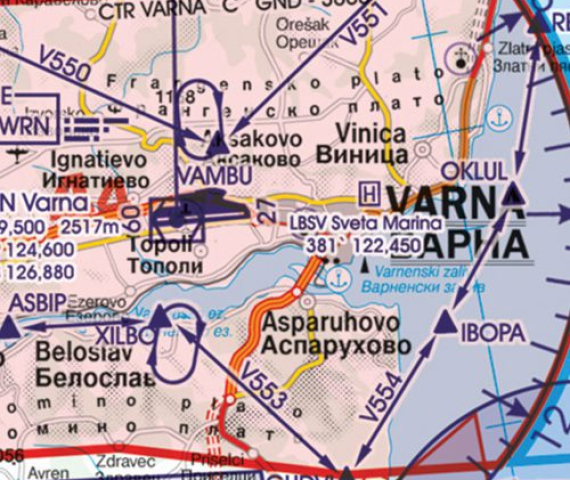

- Approach procedures
- Danger areas

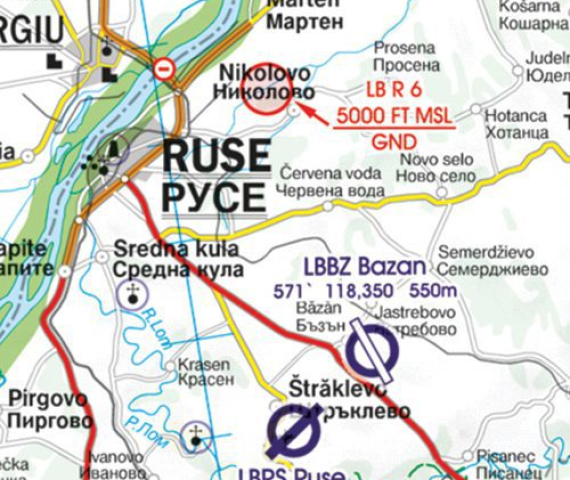

- LBR restricted area aerodrome

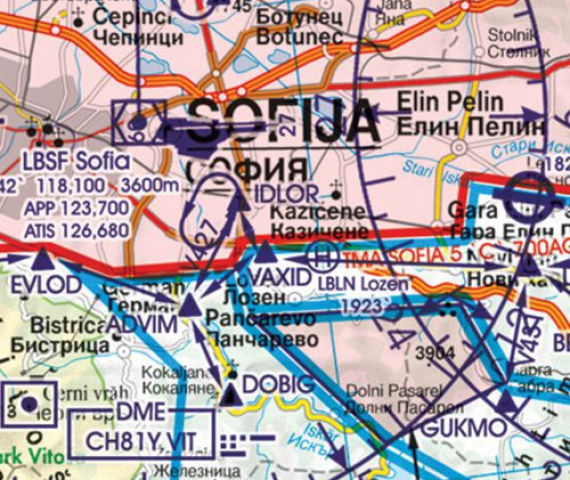

- TMA terminal control area
- TRA temporary reserved area

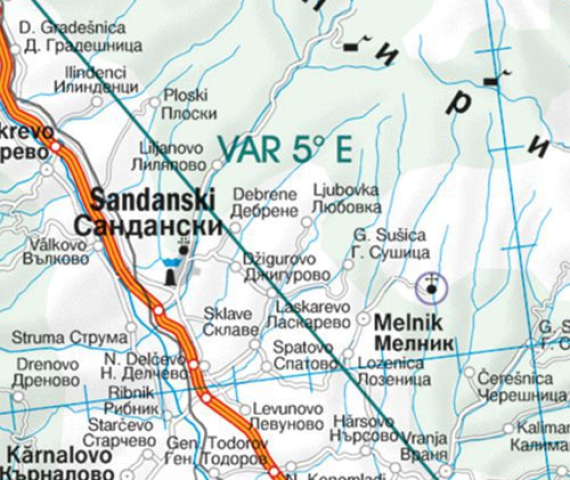

- VAR magnetic variation

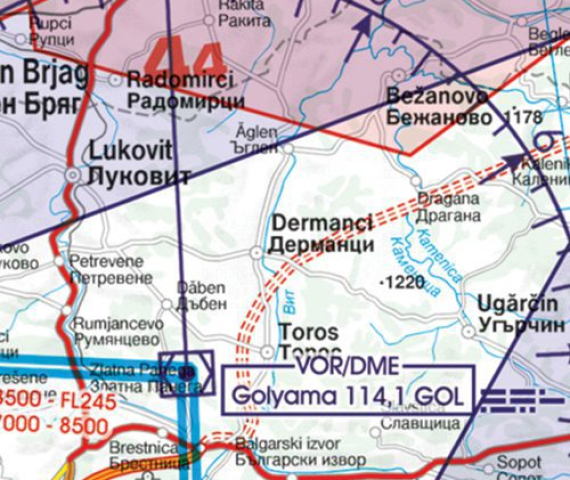

- VOR radio navigation aids
All Rogers Data VFR charts 500k are designed to the following criteria:
- Aeronautical chart on a scale of 1:500.000
- According to ICAO Annex 4; EU-Commission Regulations; AIP
- Clear representation of the ATS airspace structure
- Detailed highly sophisticated terrain map with shading and relief
- Airports, aerodromes and heliports with additional information
- Radio Navigation Aids with name, frequency and morse code
- TMZ transponder mandatory zones
- Compulsory reporting points, reporting points on request, significant points (border crossing)
- Danger- and restricted areas
- Obstacles or group of obstacles
- Minimum Grid Area Altitude
- Isogonic line model with magnetic variation
- With the Rogers Data navigation compass 500, track, time and distance in the scale of 1:500.000 can be easily measured.
