Complete Kit with Tab-tite Holder for Google Nexus 7

RAM Tab-Tite kit for the Google Nexus 7, including both generations in a heavy-duty case.

Choose an option
Choose an option
1. RAM-B-166-202 Suction cup, arm & round (KIT)
2. RAM-B-149Z-202 U-bolt, arm & round (KIT)
3. RAP-B-397-1-202 Small clamp, arm & round (KIT)
4. RAP-B-400-202 Small claw, arm & round (KIT)
5. RAM-B-121-202 Yoke, arm & round (KIT)
6. RAP-B-397-2-202 Medium clamp, arm & round (KIT)
7. RAM-B-127B-202 Windshield mounting base, arm & round (KIT)
Clear selection
SKU: RAM-HOL-TAB16KIT Categories: ,

Description

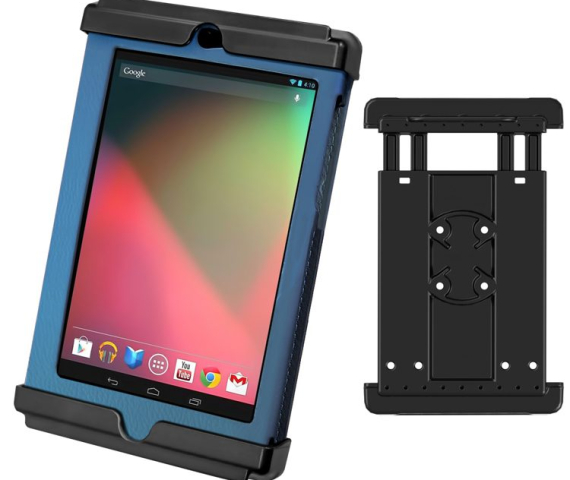

The RAM-HOL-TAB16 Tab-Tite holder is made for the Google Nexus 7 and Nexus 7 Gen 2 fitted with a heavy-duty case. It uses a spring-loaded back plate and custom support cups, so the tablet loads and unloads easily while staying secure on the move.

This kit adds a standard arm, round plate and the base of your choice.

Key features

  • Support cups with open slots for tablets of various sizes
  • Back plate can support various size support cups
  • Spring-loaded tension provides secure support and quick release
  • High strength materials
  • Full access to all ports
  • Lifetime warranty

Specifications

Height 7.12″ minimum to 8.875″ maximum
Width Up to 5.05″
Depth Up to 0.82″
Material High strength composite
Fits Google Nexus 7 and Nexus 7 Gen 2 with heavy duty case; any tablet or reader within the dimensions
Arm Standard double socket arm, 94mm overall length, 76mm socket-to-socket

What’s included

  • Holder
  • Round connecting plate
  • Standard double socket arm
  • Your choice of base (see Options)

Options

Choose the base from the Type drop-down list; each includes a standard arm and round plate.

  • RAM-B-166-202 Suction cup, arm & round (KIT): twist-lock heavy-duty suction cup base with a 3.25″ suction cup and 1″ ball.
  • RAM-B-149Z-202 U-bolt, arm & round (KIT): U-bolt base for bars or rails 13mm to 32mm in diameter.
  • RAP-B-397-1-202 Small clamp, arm & round (KIT): small Tough-Clamp base: clamps flat surfaces and square rails up to 25mm thick, or round rails from 6.35mm to 19mm OD.
  • RAP-B-400-202 Small claw, arm & round (KIT): small Tough-Claw base: tool-less fitting on round and square bars and rails from 16mm to 38mm outer diameter, suited to aircraft yokes.
  • RAM-B-121-202 Yoke, arm & round (KIT): yoke clamp base: fits rails from 0.625″ to 1.25″ in diameter, with the 1″ ball sitting parallel to the rail.
  • RAP-B-397-2-202 Medium clamp, arm & round (KIT): medium Tough-Clamp base: clamps flat surfaces and square rails up to 44.45mm thick, or round rails from 19mm to 28.5mm OD.
  • RAM-B-127B-202 Windshield mounting base, arm & round (KIT): clamp base for the lip or edge of a flat surface up to 1.12″ thick, such as a car side window edge or an aircraft glare shield.

Important information

  • Check your tablet and case against the dimensions above before ordering.

More information

You may also need

Additional information

Weight 0.3 kg
Type

1. RAM-B-166-202 Suction cup, arm & round (KIT), 2. RAM-B-149Z-202 U-bolt, arm & round (KIT), 3. RAP-B-397-1-202 Small clamp, arm & round (KIT), 4. RAP-B-400-202 Small claw, arm & round (KIT), 5. RAM-B-121-202 Yoke, arm & round (KIT), 6. RAP-B-397-2-202 Medium clamp, arm & round (KIT), 7. RAM-B-127B-202 Windshield mounting base, arm & round (KIT)
