Description

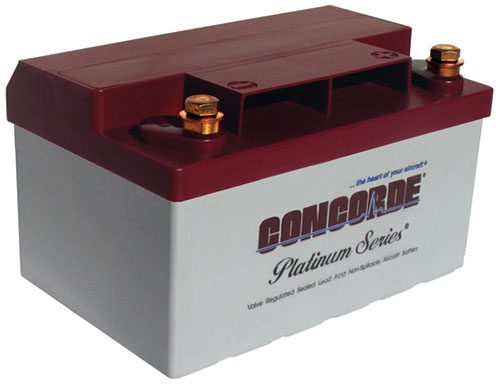

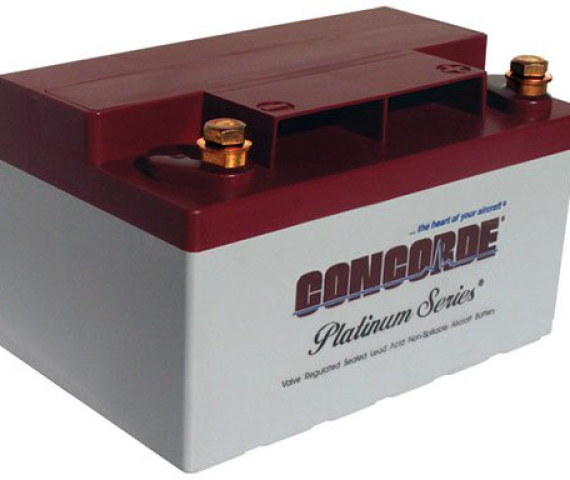

The Concorde Battery RG-12LSA is a 12V recombinant gas AGM battery made specifically for light sport aircraft. Concorde describes it as a real aircraft battery for LSAs, built to its ISO 9001 and AS9100 quality standards. It is part of the Platinum Series of hand-made AGM aircraft batteries and is rated at 11Ah with 200 cold cranking amps.
Key features
- Concorde RG Series light sport aircraft battery in the Platinum Series
- Larger-than-typical over-the-partition intercell connections and low internal resistance for high output current and good charge acceptance
- Silicon bronze alloy terminals and hardware for corrosion-free, low-impedance connections
- Reinforced polypropylene container and cover
- Ships hazmat exempt by land, sea and air
- Maintenance free, with non-removable vent valves so no electrolyte or water is ever added
- Non-spillable at any altitude or attitude (aerobatic)
- Factory tested to assure airworthiness and shipped fully charged and ready to install
- Low-impedance recombinant gas (VRLA) design with absorbed glass mat (AGM) separators
- This battery is not designed or intended for turbine engine starting. Warranty coverage applies to reciprocating engine starting and to standby or essential power installations.
Specifications
| Primary aircraft purpose | General aviation AGM aircraft battery |
|---|---|
| Voltage | 12V |
| Rated capacity (C1, 1-hour rate) | 11.00 Ah |
| Cold cranking amps | 200 |
| Maximum weight | 13.00 lb / 5.9 kg |
| IPP / IPR at 23°C (74°F) | 575 A / 400 A |
| IPP / IPR at -18°C (0°F) | 275 A / 225 A |
| IPP / IPR at -30°C (-22°F) | 170 A / 125 A |
Delivery and returns
Because of shipping restrictions, this battery can only be supplied by courier to the UK mainland. Next-day delivery is not guaranteed, so please contact us to confirm availability and the expected delivery date. See our refund and returns policy.
More information
- Concorde RG-12LSA battery brochure (PDF)
- Concorde RG series battery manual (PDF)
- Concorde RG-12LSA outline drawing (PDF)
- Concorde aircraft application guide: will it fit your aircraft
- Concorde aircraft eligibility list: is it certified for your aircraft
- Concorde RG series safety data sheet (PDF)
