Description

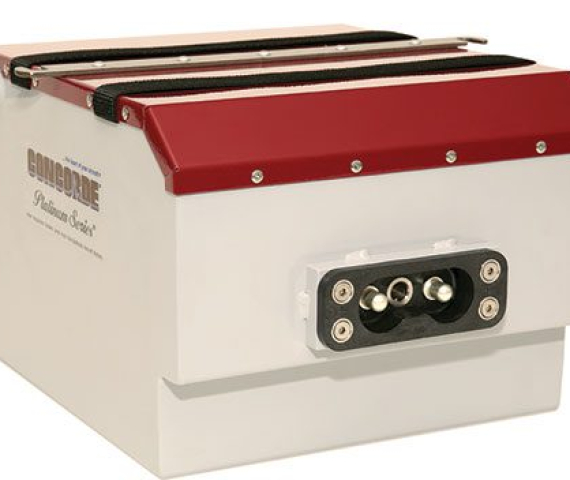

The Concorde Battery RG-427 is a 24V, 34Ah Platinum Series AGM battery for turbine engine starting and back-up power in helicopter applications. It weighs 35.8 kg and has a fire-resistant powder-coated aluminium cover and container, riveted together, with built-in vent tubes and a temperature sensor mounting plate.
Key features
- Turbine engine starting and back-up power battery for helicopter applications
- Fire-resistant powder-coated aluminium cover and container, riveted together
- Built-in vent tubes and a temperature sensor mounting plate
- Ships hazmat exempt (regular shipping)
- Maintenance free, with non-removable vent valves so no electrolyte or water is ever added
- Non-spillable at any altitude or attitude (aerobatic)
- Factory tested to assure airworthiness and shipped fully charged and ready to install
- Low-impedance recombinant gas (VRLA) design with absorbed glass mat (AGM) separators
- Superior starting power, and reliable essential power in the event of a generator failure
Specifications
| Primary aircraft purpose | Helicopter and turbine aircraft battery |
|---|---|
| Voltage | 24V |
| Rated capacity (C1, 1-hour rate) | 34.00 Ah |
| Maximum weight | 79.00 lb / 35.8 kg |
| IPP / IPR at 23°C (74°F) | 1800 A / 1200 A |
| IPP / IPR at -18°C (0°F) | 1325 A / 650 A |
| IPP / IPR at -30°C (-22°F) | 1025 A / 500 A |
Delivery and returns
Because of shipping restrictions, this battery can only be supplied by courier to the UK mainland. Next-day delivery is not guaranteed, so please contact us to confirm availability and the expected delivery date. See our refund and returns policy.
More information
- Concorde RG-427 battery brochure (PDF)
- Concorde RG series battery manual (PDF)
- Concorde RG-427 outline drawing (PDF)
- Concorde aircraft application guide: will it fit your aircraft
- Concorde aircraft eligibility list: is it certified for your aircraft
- Concorde RG series safety data sheet (PDF)
